Our Tooling

Complete forming tooling, spare parts and made-to-drawing systems — engineered in tungsten carbide, HSS and tool steel.

Tooling Systems

Forming Tooling Systems

Complete tooling packages engineered for high-volume fastener production.

Cold Forming Tooling Set
Tooling Systems

Cold Forming Tooling

Complete sets of precision-machined cold heading dies and cases for high-volume bolt, screw and fastener production on multi-station headers.

Alloy Forming Dies
Tooling Systems

Alloy Forming Dies

Carbide-faced dies for high-strength alloys and complex geometries. Optimised cavity geometry reduces forming pressure and improves material flow.

Segmental Dies
Tooling Systems

Segmental Dies

Segmented carbide die assemblies for complex fastener profiles. Segment design allows independent replacement of worn sections, reducing tooling costs significantly.

Complete Die Assembly
Tooling Systems

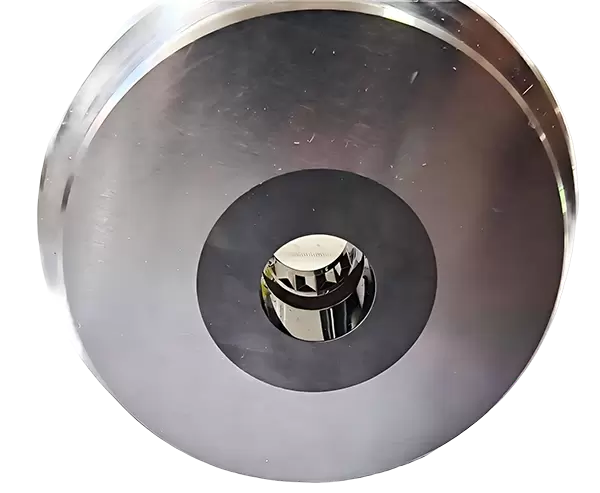

Complete Die Assembly

Fully assembled die sets with carbide inserts, hardened steel cases and all ancillary components — ready to install and run.

Punches

Header Punches & Nibs

Precision-ground punches in all profiles — TiN and TiCN coated for extended tool life.

TiN Coated Header Punches
Punches

Header Punches

TiN and TiCN coated header punches, precision-ground for consistent accuracy and extended tool life across high-volume cold forming cycles.

Hex Punches
Punches

Hex Punches

Six-sided hex punches ground to tight tolerances for forming hex bolt and screw heads. Available in HSS and carbide grades for various production volumes.

Hex Top Nibs
Punches

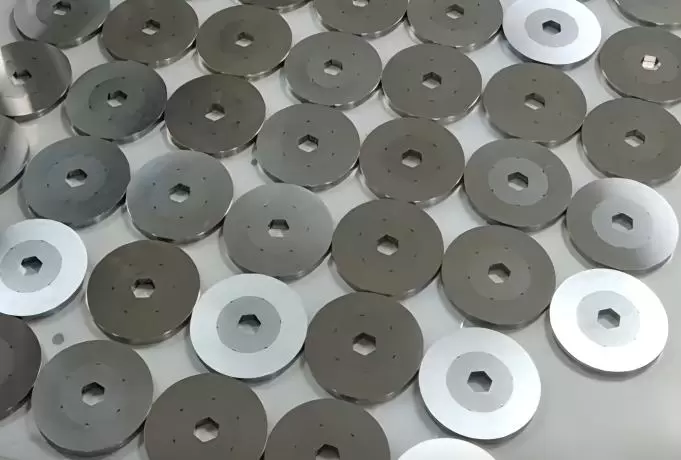

Hex Top Nibs

Hardened hex top nibs for forming the flange and bearing face on hex flange bolts and screws. Tight profile tolerances on every piece.

Hex Socket Punch
Punches

Hex Socket Punch

Precision hex socket punches for forming internal hex drive profiles. Ground in HSS or carbide to exact customer drawing specifications.

Dies

Dies & Die Cases

Full range of die assemblies, inserts and holders — hex, nut, square and custom profiles.

Die Assembly with Steel Case
Dies

Dies & Die Cases

Precision die assemblies with carbide insert and hardened steel case. Easy insert replacement minimises downtime on single and multi-station headers.

Hex Dies
Dies

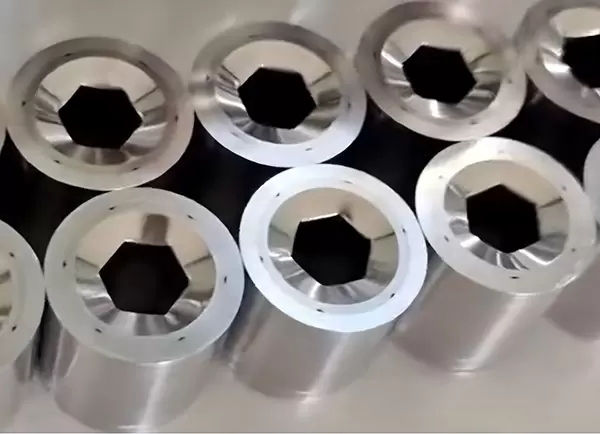

Hex Dies

Carbide hex forming dies for producing hexagonal bolt and nut profiles. Precision-ground cavity with consistent width-across-flats for tight dimensional output.

Nut Forming Dies
Dies

Nut Forming Dies

Specialised nut forming dies for hex, flange and coupling nut production. Designed for multi-station nut formers with precise cavity geometry.

Square Forming Dies
Dies

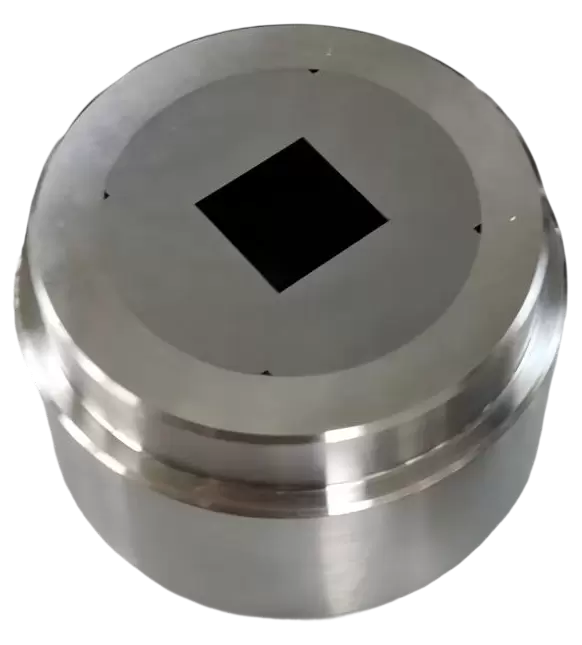

Square Forming Dies

Carbide square forming dies for carriage bolts, square-head fasteners and special profiles. Made to drawing for exact dimensional compliance.

Slotted Die Holder
Dies

Slotted Die Holders

Precision slotted die holders for accommodating split die inserts. Robust steel construction with accurate slot geometry for repeatable setup.

Die Cases with Ejectors
Dies

Die Cases with Ejectors

Hardened die cases with integrated ejector pin assemblies for reliable part extraction at high stroke rates. Engineered for minimal downtime.

Trimming

Trimming Dies

Gold-coated carbide trimming dies for clean, burr-free bolt head trimming with extended edge life.

Hex Trimming Dies
Trimming

Trimming Dies

Gold-coated carbide hex trimming dies for clean, burr-free bolt head trimming. Extended cutting-edge life with tight dimensional tolerances on every piece.

Trim Dies
Trimming

Trim Dies

Precision trim dies for close-tolerance trimming operations. Supplied in standard hex and custom profiles, hardened and ground to drawing.

Thread Rolling

Thread Rolling Dies

Precision thread rolling dies for high-speed bolt and screw thread production.

Thread Rolling Dies
Thread Rolling

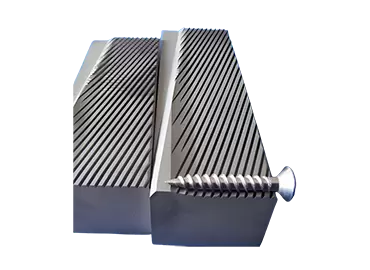

Thread Rolling Dies

High-precision flat thread rolling dies for bolt and screw thread production. Ground to exact thread profile, pitch and tolerance for consistent thread quality.

Thread Rolling Dies Type II
Thread Rolling

Thread Rolling Dies Type II

Second-generation thread rolling die sets with improved carbide grade for higher production volumes and enhanced wear resistance on difficult materials.

Components & Transfer

Carbide Inserts & Transfer Parts

Precision spare parts and transfer components to keep your forming lines running.

Carbide Inserts and Spacers
Carbide

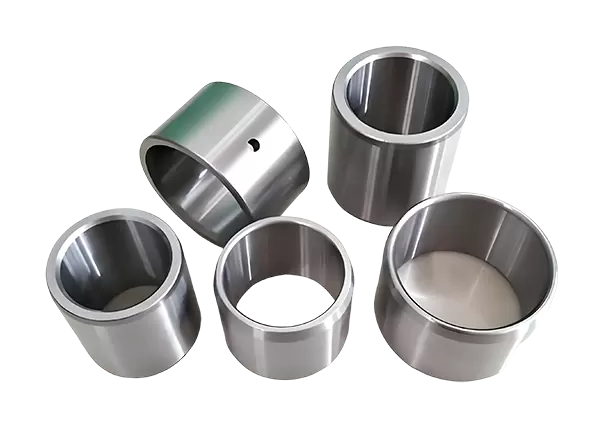

Carbide Inserts & Spacers

Precision-bore tungsten carbide inserts and steel spacers. Supplied blank or finish-ground in multiple grades to suit your wear, toughness and load requirements.

Transfer Fingers and Feeding Clamps
Transfer

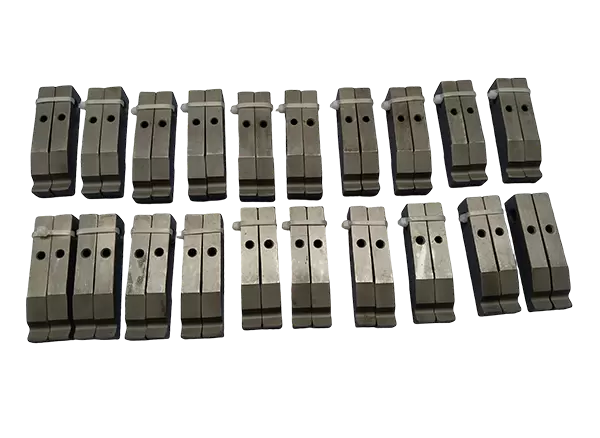

Transfer Fingers & Clamps

Hardened transfer fingers and feeding clamps for part handling between stations on multi-station headers. Supplied in matched pairs to your drawing.

Materials & Capabilities

Built to Your Specification

We match material, grade and finish to your application. Share your part and machine details and we'll recommend the right tooling.

MaterialTypical Use
Tungsten CarbideHigh-wear dies, inserts, punches
High-Speed Steel (HSS)Punches, trimming dies, tooling
Tool SteelsCases, holders, supporting parts
Powder Metallurgy SteelHigh-toughness applications
Special AlloysOn request
Process / FinishDetails
Heat TreatmentControlled hardness & toughness to spec
Precision GrindingTight tolerances & fine surface finish
CoatingsTiN, TiCN and others on request
Cold FormingTooling for cold heading processes
Custom ManufacturingMade to drawing & reverse engineering

Need a Specific Tool or Spare Part?

From a single replacement pin to a complete tooling system, send us your drawing and we'll manufacture or source it.

Request a Quote
